CNC Machining Tolerances: How to Avoid Assembly Failures & Reduce Rework (With Real Industry Cases)
Many engineering teams face unexpected assembly failures, inconsistent part fitting, or high rejection rates even after following standard tolerance guidelines. These issues rarely come from “general knowledge”—they stem from a lack of practical, case-based tolerance control. At Haomaer Precision, we help manufacturers eliminate rework, stabilize assembly, and lower costs by applying real-world tolerance strategies. We produce high-quality precision machined parts with stable, repeatable tolerances.
What Problems Does Proper CNC Tolerance Control Solve?
Most customers come to us with three urgent pain points that generic tolerance guides never fully solve:
- Parts that look correct but fail assembly in mass production
- Tolerance inconsistency between prototypes and mass production
- Over-specifying tight tolerances, leading to high cost and long lead times
Real Industry Cases: How Tolerance Control Fixed Costly Issues
Case 1: Medical Device – Sealing Failure Due to Uncontrolled Roundness
A medical customer provided a design with only linear dimensions, but their parts kept leaking during fluid testing. The issue was not diameter tolerance—it was roundness distortion caused by clamping pressure and tool path.
We adjusted clamping force, added support fixtures, and optimized finishing passes. Roundness was stabilized within 0.003mm. Leakage rate dropped from 12% to 0%.
Case 2: Automotive Component – Assembly Jamming From Thermal Expansion
An automotive manufacturer experienced frequent jamming in a shaft-and-bushing assembly. Their tolerance was ±0.01mm, which seemed acceptable.
The real problem was material expansion under engine heat. We recalculated working tolerances based on aluminum’s thermal expansion rate and adjusted matching parts to a dynamic fit. Jamming was completely eliminated.

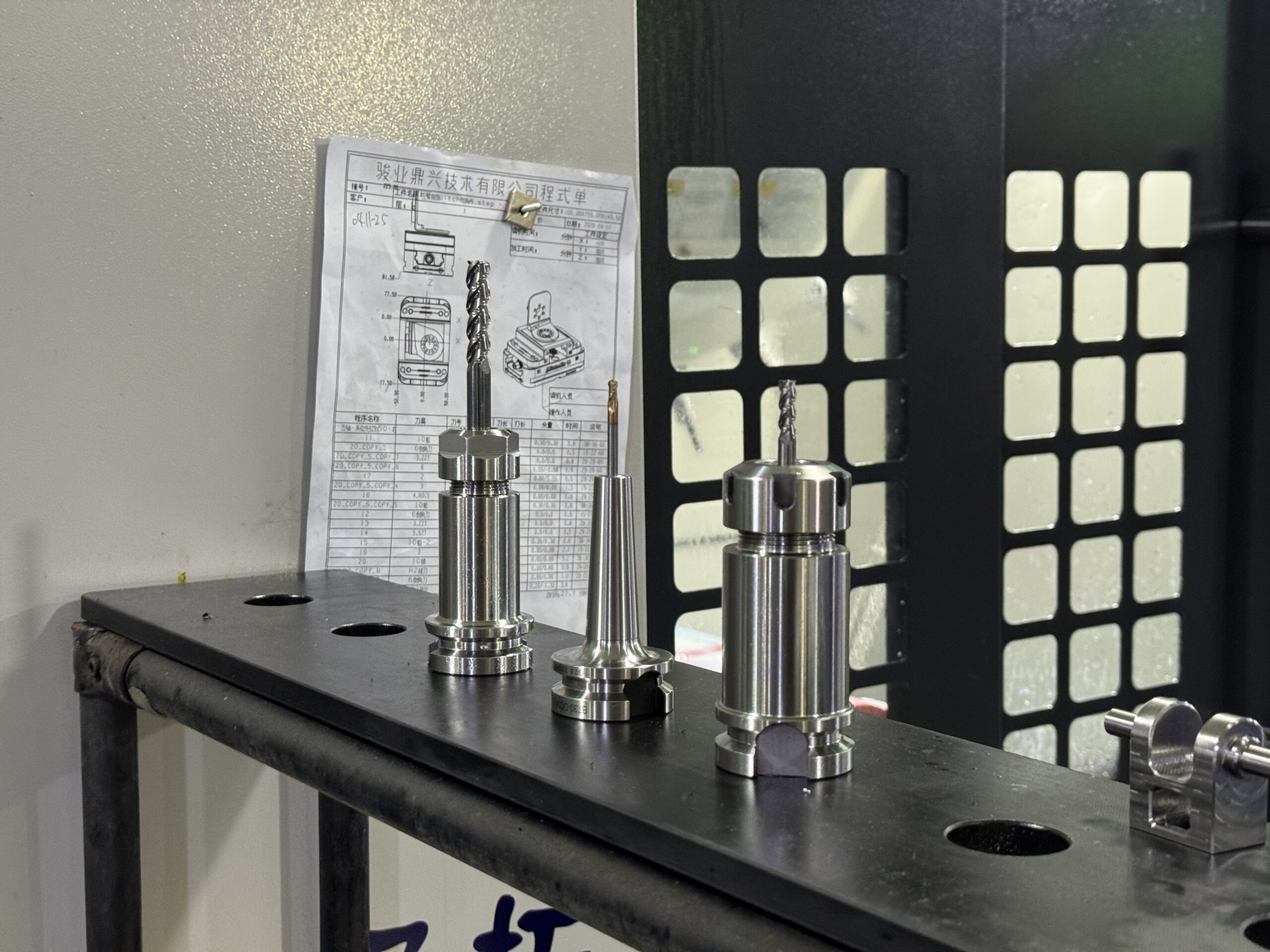

Case 3: Aerospace Fitting – Batch Inconsistency Caused by Tool Wear
Aerospace parts require extremely consistent dimensions. One client suffered 7% rejection because dimensions gradually shifted during long production runs.
We implemented tool wear monitoring and automatic offset compensation. Tolerance consistency improved dramatically, and rejection rates fell below 0.5%.
Key Factors That Actually Affect Tolerance in Production
These are not textbook theories—they are real variables that cause 90% of tolerance failures:
- Machine thermal growth during long runs
- Tool wear changing dimensions over time
- Clamping deformation on thin-walled parts
- Material springback after machining
- Unstable fixturing repeatability
Practical Solutions We Use to Stabilize Tolerances
- Pre-heating machines to stabilize thermal behavior
- Tool wear compensation during production
- Finishing cuts separated from roughing cuts
- Custom fixtures to reduce part deformation
- In-line inspection to catch drift early
Why Choose Haomaer Precision for Critical Tolerance Parts
We don’t just follow drawings—we analyze your application, assembly environment, material, and usage scenario to recommend the most reliable tolerance strategy. Our experience in medical, automotive, and aerospace projects allows us to prevent problems before they happen.
We consistently hold tight tolerances for a wide range of precision CNC machined parts used in high-demand industries.
If you want to learn more about precision machining, quality control, and tolerance management, you can check more professional articles on our blog page.
If you’re struggling with assembly failures, high rejection rates, or unstable tolerances, contact Haomaer Precision today for practical, case-proven solutions.
